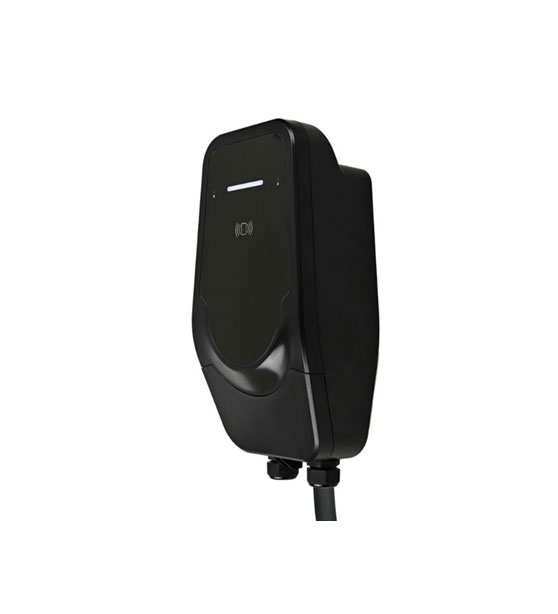

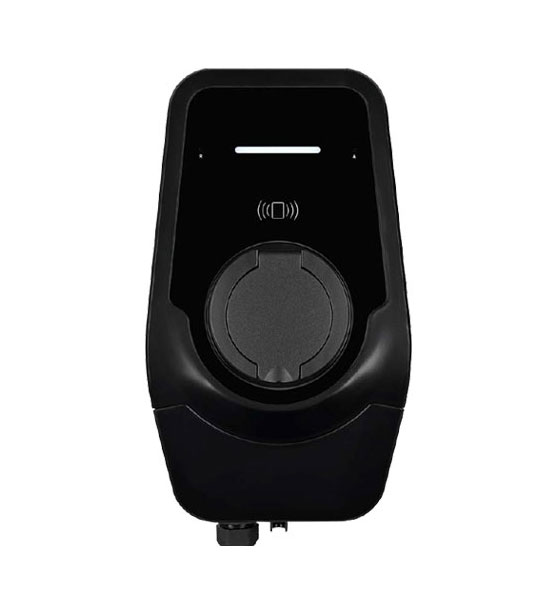

The EV NET COMPACT series of EV chargers (socketed and tethered models) are smart AC level 2 charging stations, ideally suited for home and commercial installations.
Entirely designed and manufactured in the EU, COMPACT chargers offer up to 22 kW of charging power (7.6 kW for single-phase models) and multiple control and safety features for an easy and configurable charging experience.
| 1-Phase | 3-Phase | |
|---|---|---|
| Power | 7.4 kW max | 22 kW max |
| Voltage | 230 VAC, 50 Hz | 3 x 230 / 400 VAC, 50 Hz |
| Current | 1 x 32 A max | 3 x 32A max |
| Power Level Control | 6-32 A (software control) | |
| Socket Type | IEC 62196 Type 2 | |
| Standby power | <8 VA, 5.2 W | |
| Protection | • RCD Type A (30 mA)/ DC (6 mA), IEC 61008-1 • Neutral voltage (70 Vrms) • Overcurrent (Overcurrent protection trip when IL> 1.2 x Imax) • Temperature (limiting 72°C -78°C, fault at 79°C) • Undervoltage (software fault at 90% Vnom with configurable offset, hardware shutdown at 115 Vrms ±10 Vrms) • Overvoltage (software fault at 110% Vnom with configurable offset, hardware shutdown at 300 Vrms ±10 Vrms) • Reverse phase or phase-to-phase: the hardware can handle mains misconnection • Tamper sensor: detects unauthorized opening of the charger body |
|
| Certification | CE (IEC 61851-1, IEC 61851-2), see below for full list | |
| Material | PC Plastic (up to 100% recycled feedstock) V-2 UL94 Flame retardant |
|
| Lock mechanism | Servo-type actuator lock (socketed models) | |
| Dimension (WxDxH) | 200 x 129 x 350 mm (socketed) ; 200 x 108 x 350 mm (tethered) | |
| Color | Matt Black | |
| Weight, approx: | 3.10 kg (tethered model w/ bracket, no cable) 3.50 kg (socketed model w/bracket) Package weight: 1.5 kg | 3.20 kg (tethered model w/ bracket, no cable) 3.60 kg (socketed model w/ bracket) Package weight: 1.5 kg |
| Installation Type | Hard-wired via 30 mm cable gland, 1x/3x 40A circuit rating | |
| Mounting | Vertical Wall-mounted using included metal bracket |
|
| Access Type | Cellular: dual-mode 2G/4G WLAN: 2.4 GHz (802.11 b/g/n/e/i) Bluetooth LE: for configuration of wireless access point |
| Protocol | OCPP 1.6 JSON |
| Wireless capabilities | Access Point: integrated web server for settings and diagnostics (web client) Station: for backend connectivity Note: Supports simultaneous Access point and Station functionality |
| Reader | Integrated NFC reader, 13.56 MHz, MIFARE compatible |
| App | EVPoint App Android & IOS |
| LED | RGB horizontal bar light (9 states) |
| Metering | Internal: corresponds to accuracy class 2% |
| CT Clamp | External current monitoring via dedicated current clamp device. Wired communication via RS-485 up to 30m. |
| External MID meter compatibility | Yes, on request. Can be configured for operation with MODBUS RTU MID electricity meters via RS-485 wired communication up to 30m. |
| Built in Cable | Tethered cable; Type 2 plug |
| Cable | Length 5 m standard, 8 m or 10 m (optional upon request) |
| General: IEC 61851-1:2017 Part 1, BS 7671:2018 |
| EMC: Directive 2014/30/EU IEC 61851-21-2:2018 Part 21-2 (Emissions Class B, Immunity – Residential Environments); Class B for EN 55032:2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 61000-4-2: 2009, EN 61000-4-4: 2004, EN 61000-4-5:2014; EN 61000-4-8: 2009, EN 61000-4-11: 2004 |
| Safety: Directive 2014/35/EU IEC 60950-1:2005, IEC 61508, IEC61810-1 (contactors),EN 60947-2:2017/A1:2020, ISO 13849- 1:2015, IEC60364-4-41, IEC 61008-1:2012 (RCD) |
| Radio equipment: Directive 2014/53/EU EN 62311:2008; GSM module - EN 60950-1:2006 & A11:2009 & A1:2010 & A12:2011 & A2:2013, ETSI EN 301 489-1 V2.2.0, EN 301 511 V12.5.1 (2017-03); WiFi module - EN 301 489-1 V2.2.0 (201703), EN 301 489-17 V3.2.0 (2017-03), EN 60950-1: 2006 & A11: 2009 & A1: 2010 & A12: 2011 & A2: 2013, EN 300 328 V2.1.1 (2016-11) |
| Electrical | OVC III, PD2 |
| IP Rating | IP54 |
| IK Rating | IK08 (base model) |
| Temperature | Operational: -25°C ÷ +55°C(3K6) Transportation: -40°C ÷ +85°C (2K4 modified) |
| Cooling | Natural air cooling |
| Storage Temperature | -40°C to 70°C (1K5) |
| Humidity | 10% ÷100% Relative humidity, non-condensing |
| Altitude | -50 to +2000 m |
